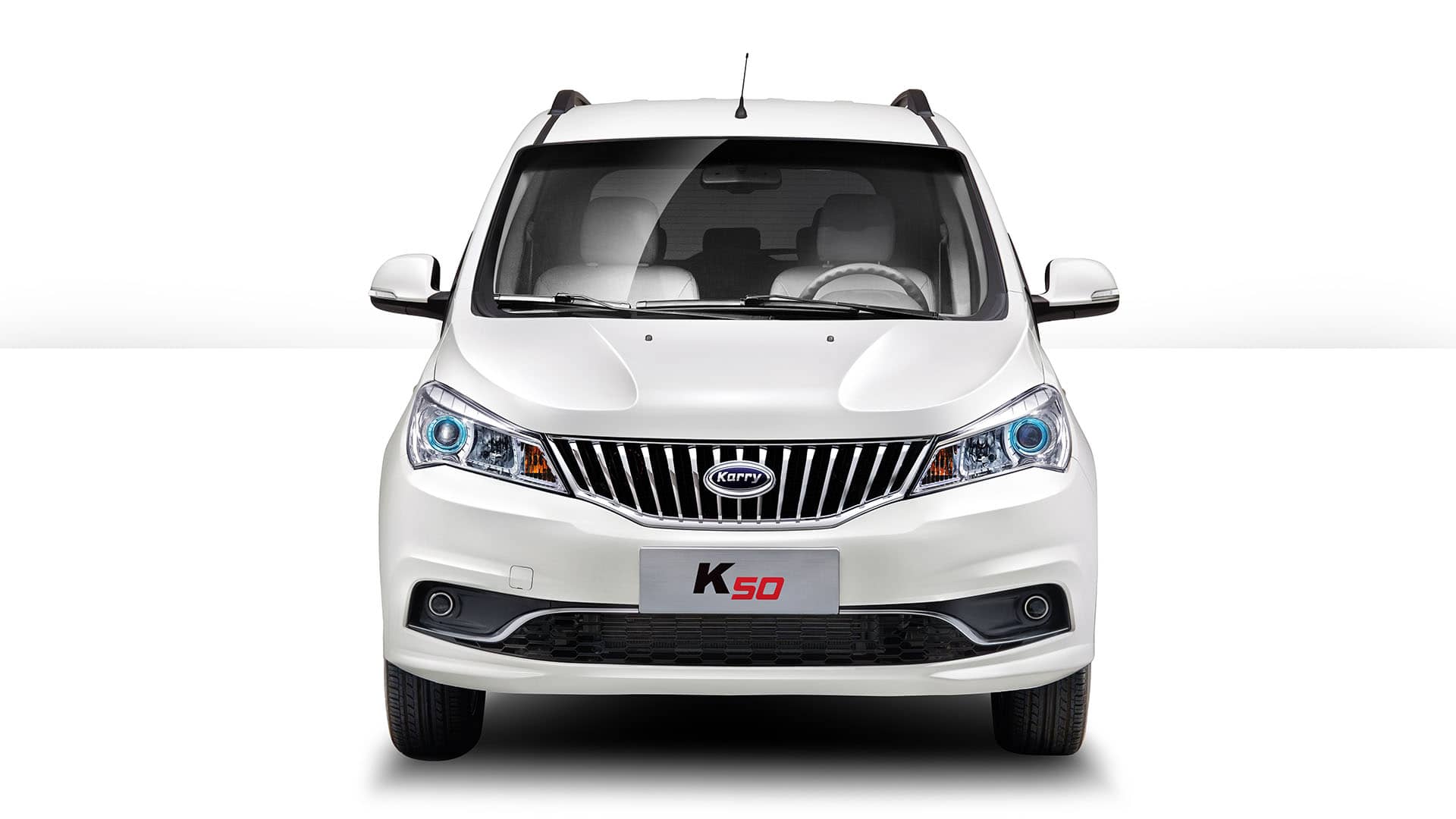

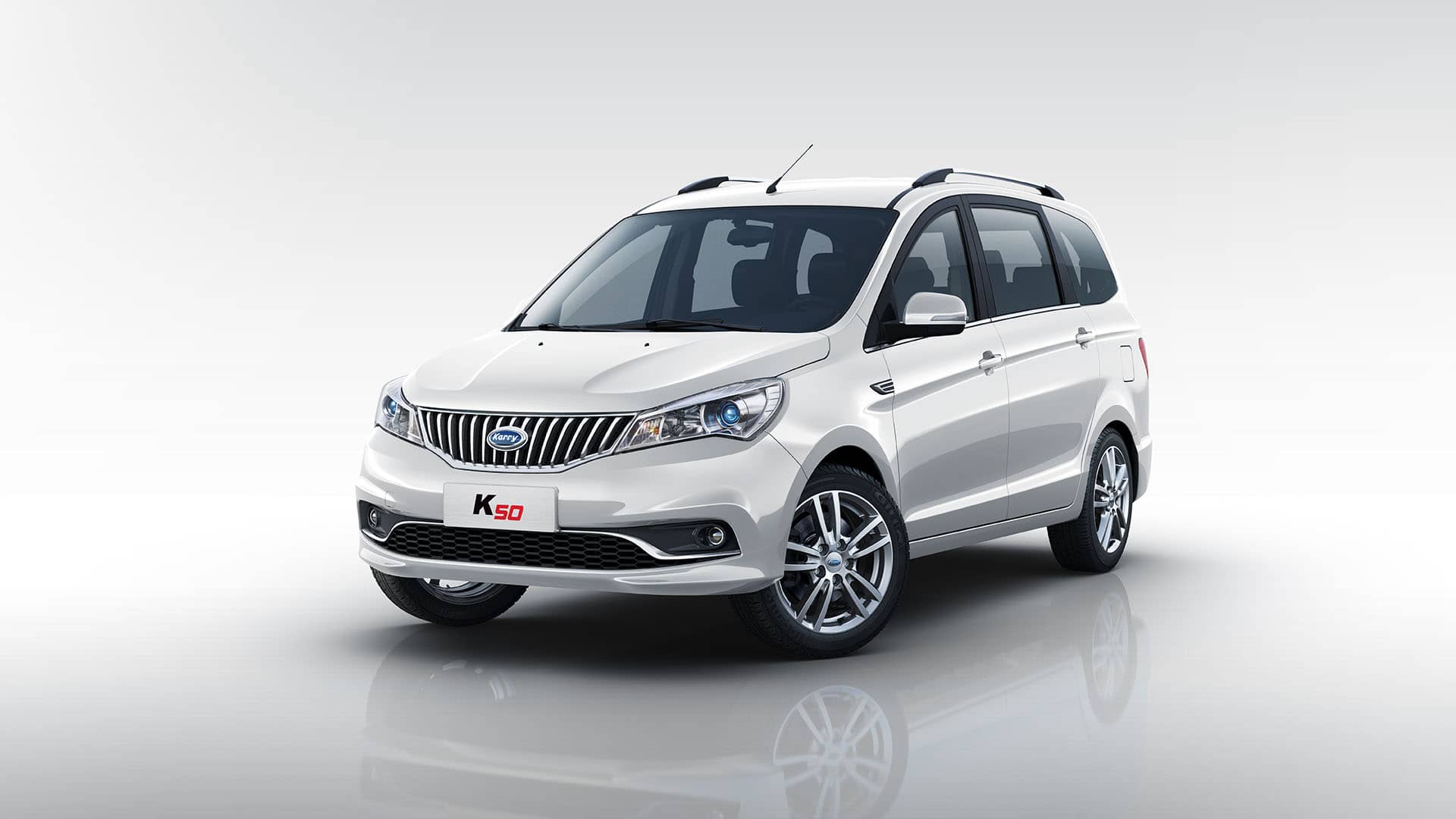

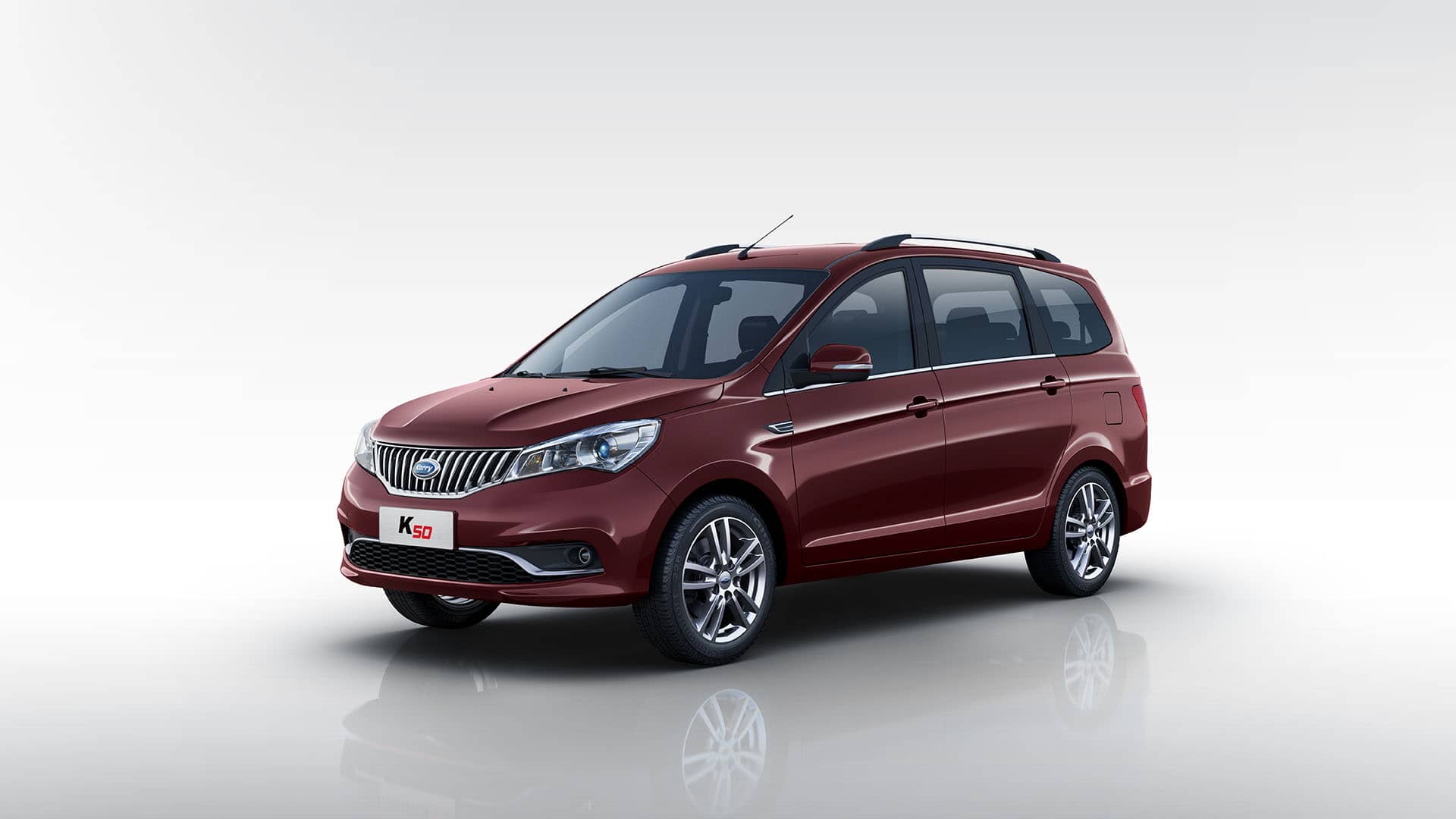

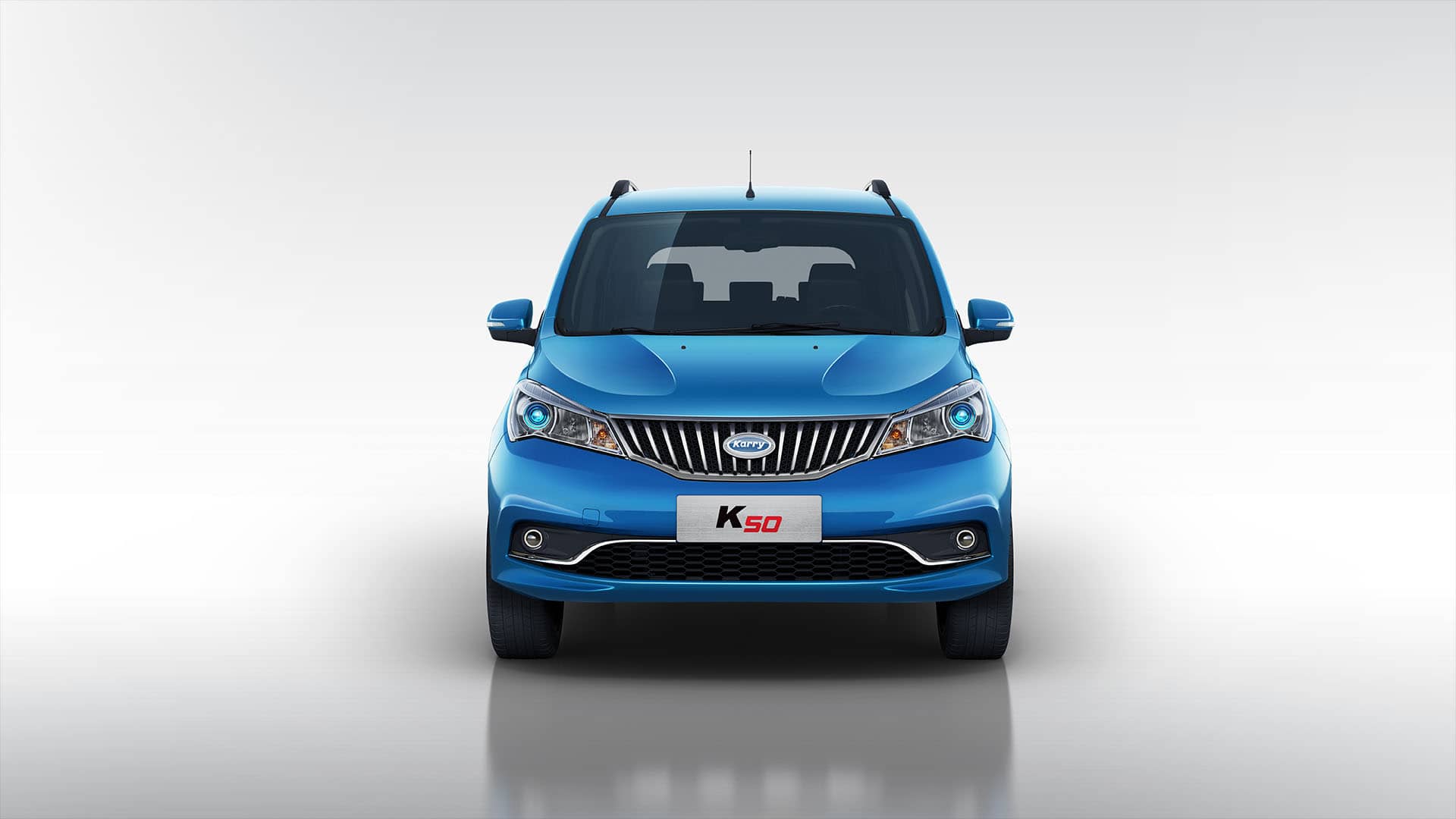

Karry K50
Technical Specification
| Property | Basic Edition | Comfort Edition |
|---|---|---|
| Length x width x height(mm) | 451x176x1790 | 451x176x1790 |
| Wheel base (mm) | 2755 | 2755 |
| Tread (front/rear) (mm) | 1494/1492 | 1494/1492 |
| Minimum ground clearance | 170 | 170 |
| Minimum turning radius (m) | 5.25 | 5.25 |
| Curb weight (Kg) | 1338 | 1230/1270 |
| Tire Specification | 185/65 R15 | 205/60 R15 |
| Number of Seats | 8 | 7 |
| Property | Basic Edition | Comfort Edition |
|---|---|---|
| Engin model | ACTECO-SQRD4G15 | ACTECO-SQRD4G15 |
| Engine Type | inline 4 cylinders SOHC 16V MFI engine | inline 4 cylinders SOHC 16V MFI engine |
| Engine Displacement (cc) | 1497 | 1497 |
| Maximum Power (kw) | 80 | 80 |
| Maximum Torque (N.m) | 140 | 140 |
| Compression Ratio | 10.5:1 | 10.5:1 |
| Maximm speed (km/h) | 155 | 155 |
| Transmission type | 5MT(QR515MHF) | 5MT |
| Fuel tank capacity (L) | 45 | 45 |
| Fuel Consumption (km/l) | 15 | 15 |
| Emission Standard | EulV | ChinaV |
| Property | Basic Edition | Comfort Edition |
|---|---|---|
| Type of break system (front/rear) | Disc/Drum | Disc/Disc |
| Type of Suspension system (front/rear) | McPherson Independent Suspension/Torsional beam type helical spring | McPherson Independent Suspension/Torsional beam type helical spring |
| Wheel drive | FF | FF |
